NILOS Automotive Products for Bearing Protection in Demanding Environments
NILOS automotive products are specialist metal bearing seals designed to protect rolling bearings from contamination in demanding automotive and motorsport environments. NILOS-RINGS are widely recognised for their space-saving design and effectiveness in applications where conventional rubber or polymer seals may be unsuitable.
NILOS automotive products are used to extend bearing service life by preventing the ingress of dirt, dust, moisture, and debris while retaining internal lubrication under challenging operating conditions.
Engineering Concept and Sealing Principle

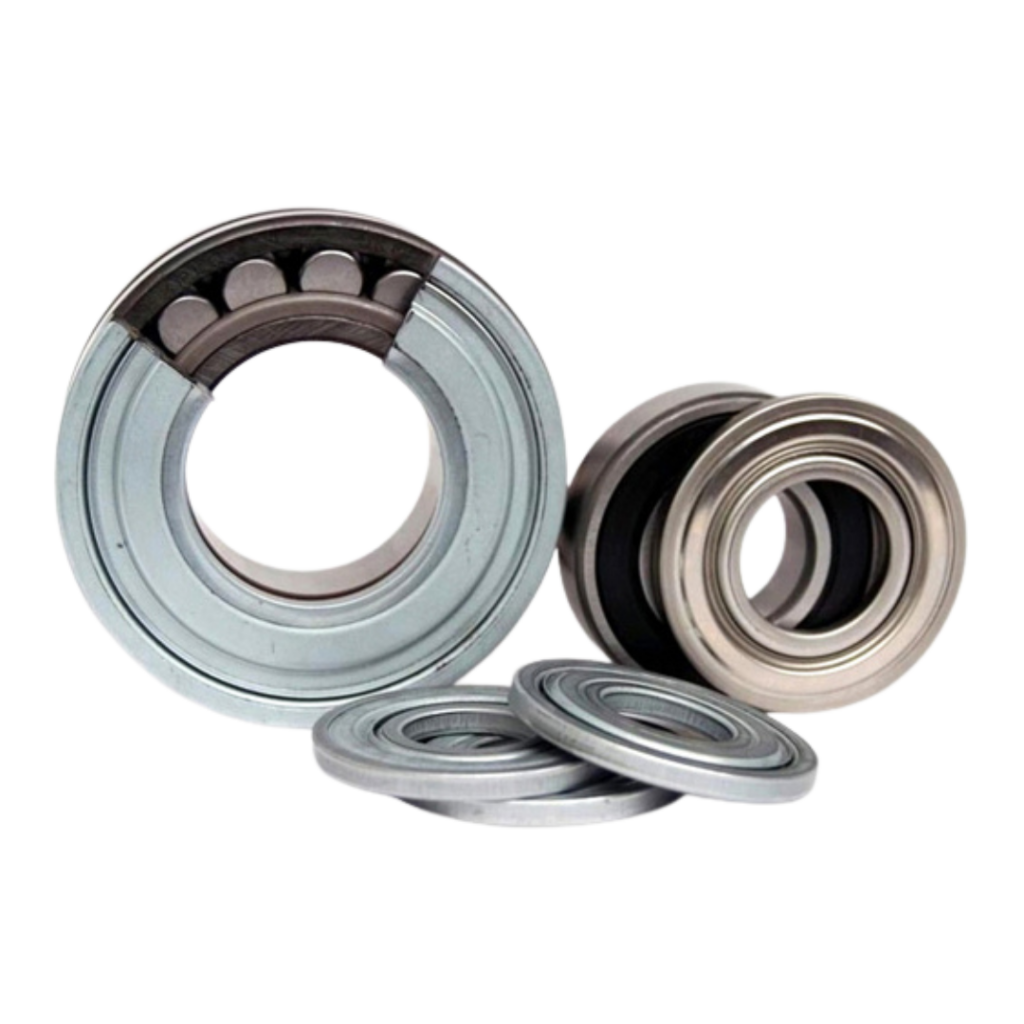

NILOS-RINGS operate using an all-metal labyrinth sealing principle. The seal is fitted directly against the bearing inner or outer ring and, during initial operation, the sealing edge forms a precise running track on the hardened bearing surface.
This process creates:
- A highly effective labyrinth seal
- Minimal friction after the run-in phase
- Reliable sealing without elastomer components
Once established, the sealing gap operates in the micron range, providing effective protection while supporting stable bearing operation.
Nilos and ABC
- NILOS products include all-metal bearing seals used to protect rolling bearings from contamination.
- NILOS-RINGS use a labyrinth sealing principle formed during initial run-in.
- The products are suitable for harsh automotive and motorsport environments where durability is critical.
- Automotive Bearings & Components supplies NILOS automotive products with a focus on correct specification and application suitability.
Materials and Construction Options
NILOS products are manufactured from durable metal materials selected for resistance to wear, corrosion, and mechanical impact.
Standard material options include:
- Matt galvanised special strip steel
- Stainless steel (Cr-Ni)
- Brass
These material choices allow NILOS-RINGS to be specified for different environmental and performance requirements, including exposure to moisture, aggressive contaminants, and temperature variation.
Why NILOS Automotive Products Are Used in Motorsport
Contamination Resistance
Motorsport components are exposed to brake dust, road debris, moisture, and abrasive particles. NILOS automotive products provide effective protection against contamination that can lead to premature bearing wear or failure.
High-Speed Capability
Certain NILOS seal types are suitable for high circumferential speeds once the run-in process is complete. Non-contact labyrinth designs support higher speeds while maintaining effective sealing.
Durability Under Load and Vibration
All-metal construction allows NILOS automotive products to maintain sealing performance under vibration, shock loading, and repeated thermal cycling.
Common Automotive and Motorsport Applications
NILOS automotive products are used in a range of applications where bearing protection is critical.
Wheel Hub and Drivetrain Assemblies
- Wheel bearings exposed to road debris
- Drivetrain bearings subject to contamination
Engine and Ancillary Systems
- Bearings operating near abrasive or dusty environments
- Components requiring compact sealing solutions
Motorsport and Performance Machinery
- Racing vehicles operating in harsh track conditions
- Applications where rubber seals may degrade
These applications benefit from space-efficient sealing with long-term reliability.
NILOS Automotive Products from Automotive Bearings & Components (ABC)
Automotive Bearings & Components supplies NILOS automotive products as part of a comprehensive bearing protection and sealing offering. The focus is on supplying seals that support bearing longevity and reliability in automotive and motorsport applications.
ABC supports the correct selection of NILOS automotive products based on bearing type, operating speed, and environmental exposure.
Why NILOS Automotive Products Are Trusted
NILOS automotive products are trusted because they:
- Provide effective contamination protection using all-metal labyrinth sealing
- Operate reliably under vibration and shock
- Support high-speed bearing applications after run-in
- Resist wear, corrosion, and environmental damage
- Extend bearing service life in demanding automotive environments
For automotive professionals, this supports confidence in bearing protection and system reliability.
